Product Details
Overview

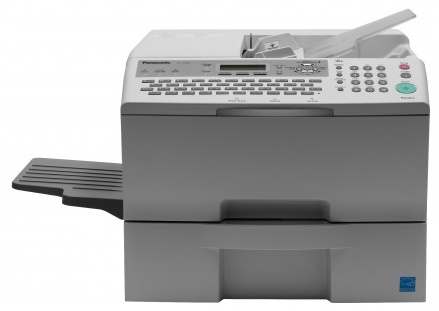

The Panafax UF-7200 high-volume workstation is designed to handle the needs of today's busy offices or midsize workgroups. With standard 550 sheet paper capacity and 19ppm print engine the UF-7200 is built for true office productivity.With user friendly features like the QWERTY keyboard for easy station programming, 10,000 page all-in-one toner cartridge, large easy to pull out paper draw and advanced network device management software you can rest assured the Panafax UF-7200 will not be the bottleneck in your office. Main Features
- QWERTY keyboard
- Optional Internet Fax / Email / Network Scanning
- Optional 2nd G3 communication port (Dual line fax)
- Document Management System software included
- 580 Auto-dialers expandable to 1,000 with optional SD memory card
- High-speed scanning of 1.4 seconds per page
- 33.6 Fax with JBIG
- 550 sheet cassette expandable to 1,100 sheets
- Network printing up to 19ppm
- 12MB standard memory (SD type memory cards up to 2GB capacity)
- USB 1.1 port standard
Specs
General Specifications
- ADF Capacity: 100 Sheets
- Recording Paper Capacity: 550 Sheet
- Power Requirements: AC 120V, 50/60 Hz
- Power Consumption: Max: Approximately 1000 W
Power Save Mode: 9.5 Wh
Sleep Mode: 4.5 Wh - Dimensions
Dimensions and weight are approximate: 17.3" (W) x 17.7" (D) x 14.2" (H) - Weight: 61.72lbs
- Document Size: Max: 8.5" x 78.7" with operators assistance 1
Min: 5.5" x 5.5" - Image Memory Capacity: Standard: 3 MB (180 pages)
Max: 2GB (12,750 pages) with optional SD Memory card
- Network Scanner Interface: 10/100 Ethernet
- Scanning Resolution: Standard: 150 dpi x 150 dpi
Fine: 300 dpi x 300 dpi
Super Fine: 600 dpi x 600 dpi - Scanning Speed 2: Approximately 1.1 seconds (150 x 150 dpi)
- Printer Interface: USB 1.1 / 10/100 Ethernet
- Printer Language: Standard: Panasonic Printing System for Windows®
- Paper Size: Letter/ Legal/ A4
- Printer Memory: 32MB
- Printing Resolution: 600dpi: 600 x 600dpi
- G3 Fax Compatibility: ITU-T Group 3, ECM
- G3 Fax Transmission Speed 3: Approximately 2.7 seconds per page (letter size)
- G3 Fax Scanning Resolution: Standard: 203 dpi x 98 lpi (8 dots/mm x 3.85 lines/mm)
Fine: 203 dpi x 196 lpi (8 dots/mm x 7.7 lines/mm)
Super Fine: 406 dpi x 391 lpi (16 dots/mm x 15.4 lines/mm) - No. of Auto Dialers: Standard: 580
Max: 1,000 with optional SD memory card (32MB to 2GB) - Coding Scheme: MH/MR/MMR/JBIG
- Number of Memory Job Files: 50
- Effective Scanning Width: 8.34"
- Scanning Speed: Approximately 1.4 seconds per page (letter)
- Scan-to-Email Compatibility: IETF RFC 2305, ITU-T T.37
- Communication Protocol: TCP/IP, SMTP, POP3, MIME, DHCP, LDAP, SNMP/MIB
- Data Format: TIFF-FX (Profile S/FJ), PDF
